What is the minimum diameter spool or sheave to make a 180 degree turn?
5/16" 6x19 Class Wire Rope - 10540 lbs Breaking Strength
What is the minimum diameter spool or sheave to make a 180 degree turn?
Status:
Open Nov 20, 2018 - 02:17 PM
1answer
Answer
Nov 20, 2018 - 02:20 PM
For a turn that sharp, the general rule is 20x the wire rope diameter, which in this case would mean roughly a 6" sheave. Of course, an engineer may run different calculations, but this is the general rule in the industry.
View More Product Details

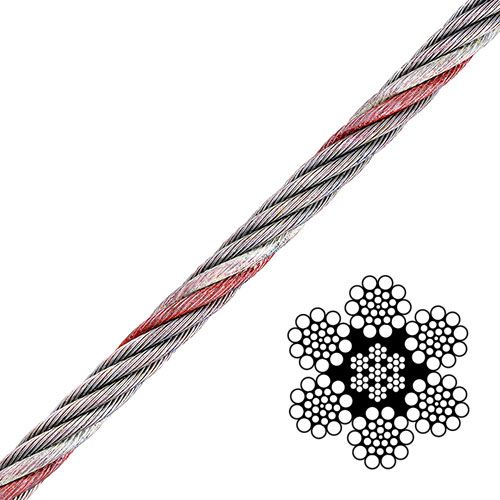

5/16" 6x19 Class Wire Rope - 10540 lbs Breaking Strength
"\u003ch2\u003e6x19 Class Bright Wire Rope - EIPS IWRC\u003c\u002fh2\u003e\n\u0
03cp\u003e6x19 Class bright wire rope is the general-purpose standard for lifting, pulling and rigging. It balances strength, abrasion resistance and handling, and is used for slings, winch lines, cranes and hois...
