How tightly can I wrap 7/16" cable? Can I wrap it on a 2" dia. winch without harming it?

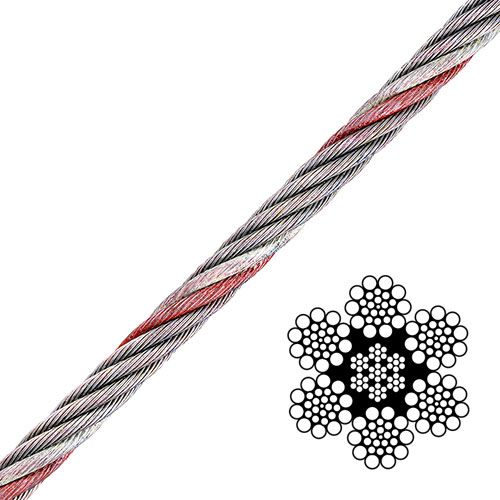

7/16" 6x19 Class Wire Rope - 20400 lbs Breaking Strength
How tightly can I wrap 7/16" cable? Can I wrap it on a 2" dia. winch without harming it?
Status:
Open May 08, 2019 - 02:03 PM
1answer
Answer
May 08, 2019 - 10:57 PM
There are several variables to consider, but in general, wire rope mfg's like to see a 10:1 or 20:1 ratio, meaning take the wire rope diameter and multiply it by 10 or 20, and that gives you the appropriate size sheave to use. The bigger, the better, and the easier on the wire rope. Of course, having a large, oversized sheave is not always doable or practical. Generally for this size of cable, we see diameters of 4" - 6".
View More Product Details
7/16" 6x19 Class Wire Rope - 20400 lbs Breaking Strength
"\u003ch2\u003e6x19 Class Bright Wire Rope - EIPS IWRC\u003c\u002fh2\u003e\n\u0
03cp\u003e6x19 Class bright wire rope is the general-purpose standard for lifting, pulling and rigging. It balances strength, abrasion resistance and handling, and is used for slings, winch lines, cranes and hois...
